PLM Product Control
Intuitive Vehicle and Implement Communication is Just a Touch Away

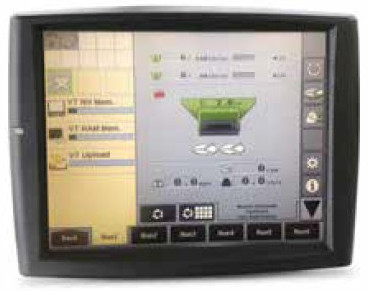

PLM™ ISOBUS Product Control gives you the power to view your implement on your ISO compliant display via a virtual terminal and control your implement's necessary functions at the touch of a finger.
WHY PLM ISOBUS ?
- Installs in minutes
- Easy user interface
- One-time setup
- Settings automatically transfer from machine to machine
- Plug 'n play with your existing ISOBUS compliant display
- Ability to perform variable rate, section control, prescriptions, and as-applied mapping
PLM™ ISOBUS Product Control is compatible with many ISO enabled displays and supports a variety of field applications, making it a great solution for the mixed fleet grower.
-
Display Compatibility
- New Holland IntelliView™ IV
- Case IH Pro 700
- John Deere 2630
- John Deere Generation 4
- Mueller TOUCH800® & TOUCH1200®
- Ag Leader Integra
-
PLM™ ISOBUS Product Control Plataforms
- Dry spreader
- Liquid fertilizer/anhydrous ammonia
- Slurry
- Sprayer
- Weather station
-

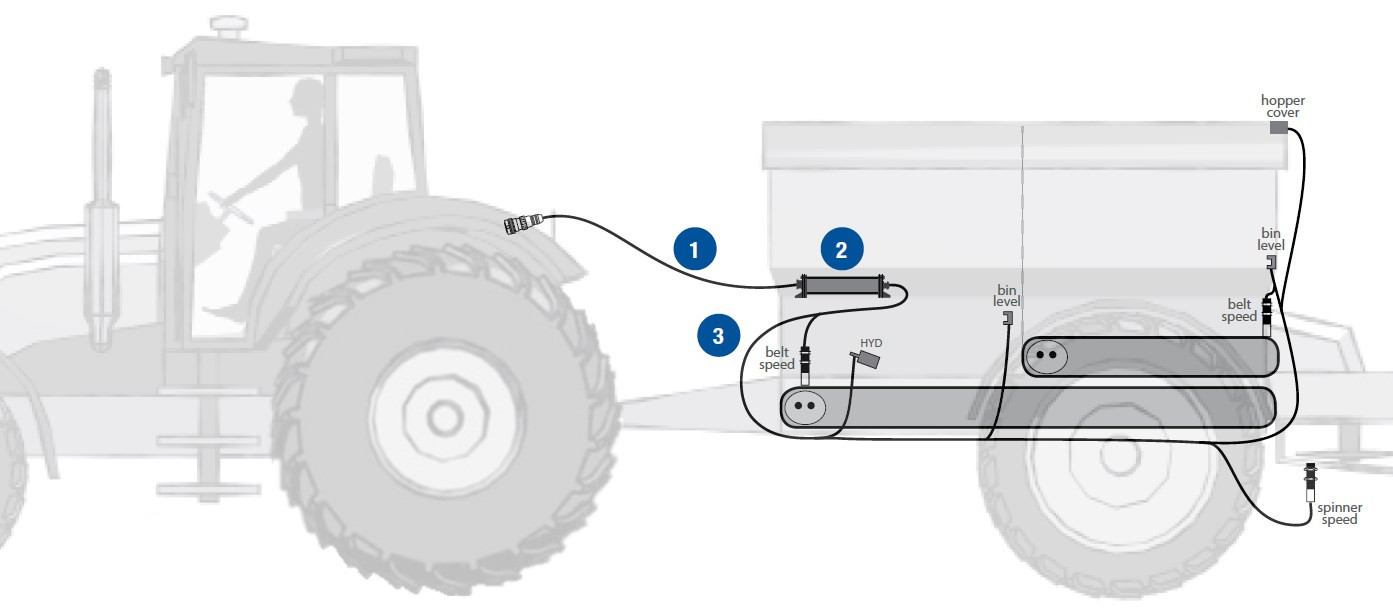

1. ISOBUS HARNESS
DESCRIPTION
- Implement with Master Switch, 3ft.
- Implement with Master Switch, 3ft.
- Implement with Master Switch, 3ft.
- Implement with Master Switch, 3ft.
- Implement with Master Switch, 3ft.
- Implement with Master Switch, 3ft.
- Implement with Master Switch, 3ft.
- Trimble ISO to ECU Harness, 3ft.
-
2. SPREADER ECU
DESCRIPTION
- Spreader ECU
-
3. COMPLETE HARNESS
DESCRIPTION
- Spreader ECU Harness
- Raven 660 22 pin Adapter
- OR
- Field IQ Rate Adapter
-
OPTIONAL ACCESSORIES
DESCRIPTION
- Foot Pedal with 12ft. Cable
- Foot Pedal Extension
- Download Box Kit
- Diagnostic T-Adapter DT 4-Pin
- DT-4-Pin to DB9 Download Box

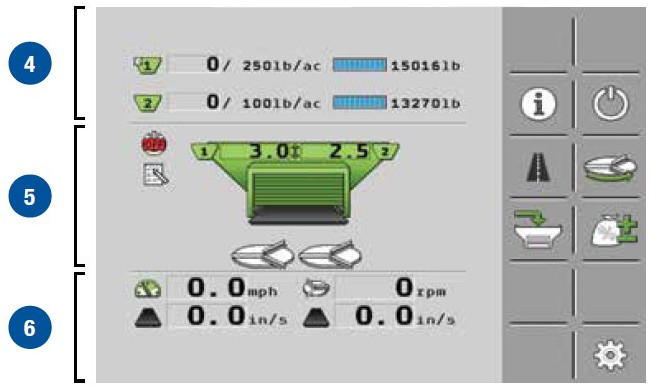

VIEWABLE PARAMETERS
-
4. DUAL BIN ACTUAL/TARGET APPLICATION RATE
-
5. GATE HEIGHTS & SPINNERS ON/OFF
-
6. GROUND SPEED, BELT SPEEDS, & SPINNER RPM
-

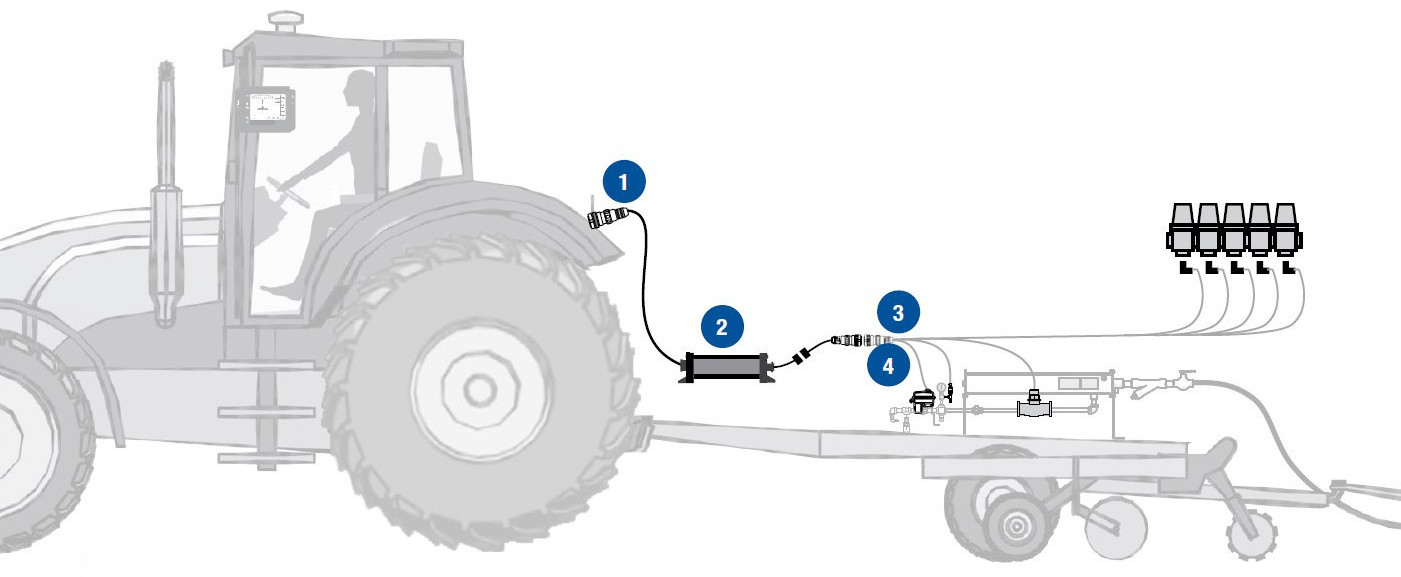

LIQUID FERTILIZER & AMMONIA APPLICATION SYSTEM
Cover more ground with less fertilizer with the section control and variable rate capabilities of the liquid fertilizer application system.
-
1. ISOBUS HARNESS
DESCRIPTION
- Implement with Master Switch, 3ft.
- Implement with Master Switch, 3ft.
- Implement with Master Switch, 3ft.
- Implement with Master Switch, 3ft.
- Implement with Master Switch, 3ft.
- Implement with Master Switch, 3ft.
- Trimble ISO to ECU Harness, 3ft.
-
2. LIQUID FERTILIZER ECU KIT
DESCRIPTION
- Liquid Fertilizer ECU
-
3. COMPLETE HARNESS
DESCRIPTION
- Liquid Fertilizer ECU Harness
- Field IQ/AccuCtrl/IntelliRate Adapter
-
4. ADAPTER HARNESS
DESCRIPTION
- Liquid Fertilizer ECU to 4x0 Harness
- Liquid Fertilizer ECU to 4xx0 Harness
-
OPTIONAL ACCESSORIES
DESCRIPTION
- Foot Pedal with 12ft. Cable
- Foot Pedal Extension
- Download Box Kit
- Diagnostic T-Adapter DT 4-Pin
- IBIC ISOBUS T-Adapter DT 4-Pin
- DT-4-Pin to DB9 Download Box

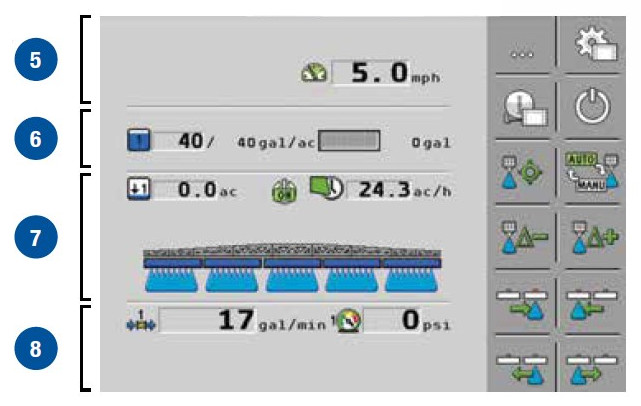

VIEWABLE PARAMETERS
-
5. SPEED
-
6. ACTUAL RATE & GAL. LEFT
-
7. ACRES TO EMPTY & AREA PER HOUR
-
8. FLOW RATE
-

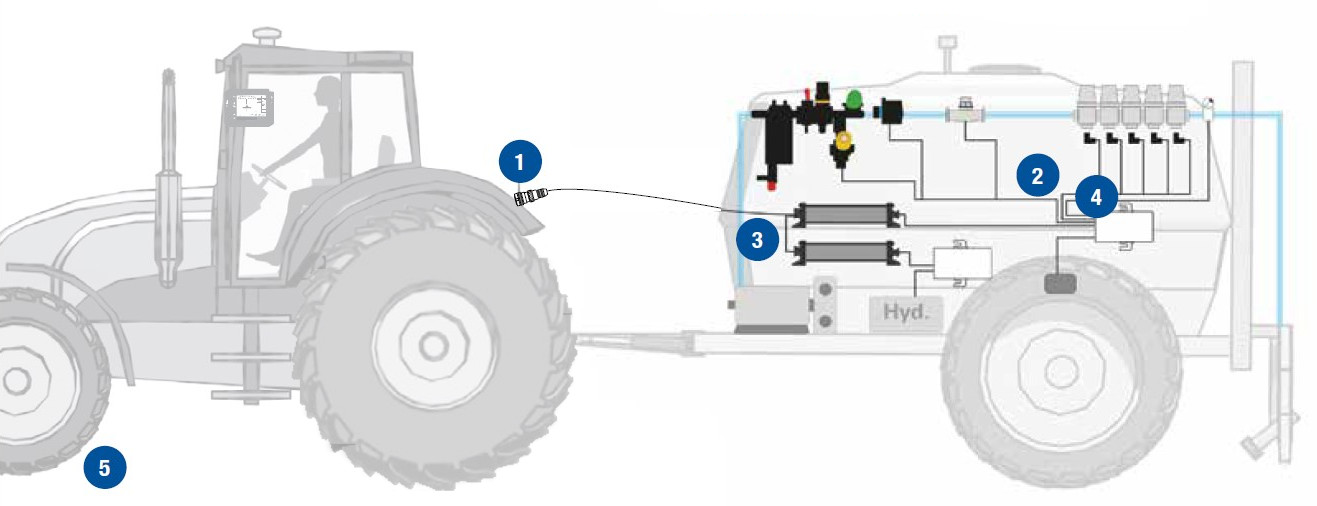

SPRAYER APPLICATION SYSTEM
The Sprayer Application System provides a live view of your sprayer's performance with up to 10 boom section control for manual or variable rate application.
-
1. ISOBUS HARNESS
DESCRIPTION
- Implement with Master Switch, 3ft.
- Implement with Master Switch, 3ft.
- Implement with Master Switch, 3ft.
- Implement with Master Switch, 3ft.
- Implement with Master Switch, 3ft.
- Implement with Master Switch, 3ft.
- Trimble ISO to ECU Harness, 3ft.
-
2. COMPLETE HARNESS
DESCRIPTION
- Liquid Fertilizer ECU Harness
- Raven 4x0 Adapter Harness
- Raven 4xx0 Adapter Harness
- Field IQ/AccuCtrl/IntelliRate Adapter
-
3. SPRAYER ECU KIT
DESCRIPTION
- Sprayer ECU
-
4. ADAPTER HARNESS
DESCRIPTION
- Liquid Fertilizer ECU to 4x0 Harness
- Liquid Fertilizer ECU to 4xx0 Harness
-
OPTIONAL ACCESSORIES
DESCRIPTION
- Foot Pedal with 12ft. Cable
- Foot Pedal Extension
- Download Box Kit
- Diagnostic T-Adapter DT 4-Pin
- IBIC ISOBUS T-Adapter DT 4-Pin
- DT-4-Pin to DB9 Download Box

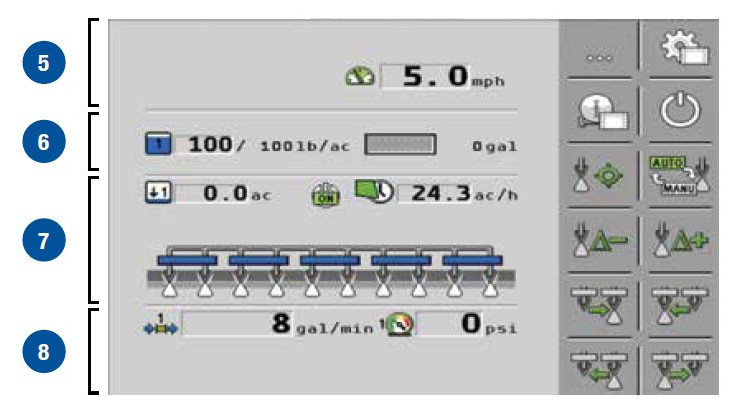

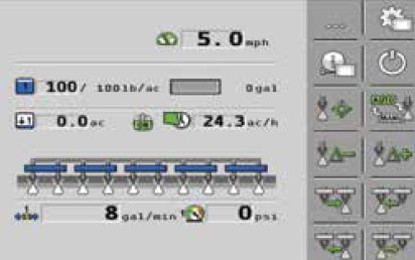

VIEWABLE PARAMETERS
-
5. SPEED
-
6. ACTUAL RATE & GAL. LEFT
-
7. ACRES TO EMPTY & AREA PER HOUR
-
8. FLOW RATE
-
SLURRY APPLICATION SYSTEM
ISOBUS Slurry Application System gives you full control of your slurry tanker. Whether you wish to use section control for two booms or 10, this application system has you covered.
-

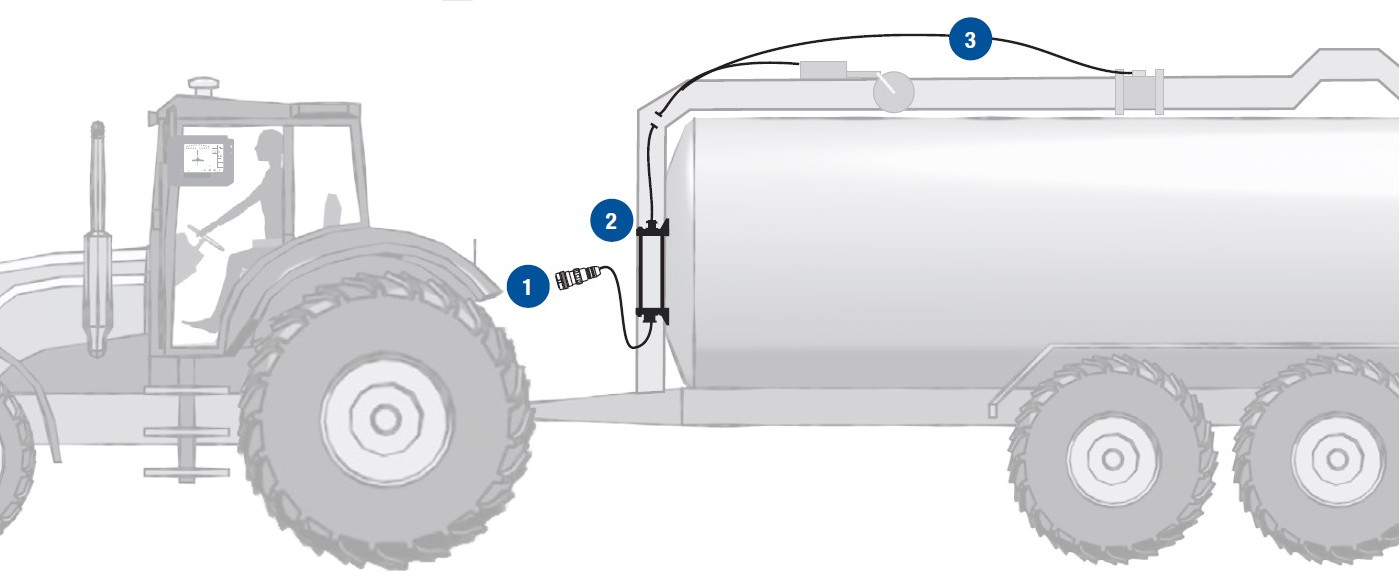

1. ISOBUS HARNESS
DESCRIPTION
- Implement with Master Switch, 3ft.
- Implement with Master Switch, 3ft.
- Implement with Master Switch, 3ft.
- Implement with Master Switch, 3ft.
- Implement with Master Switch, 3ft.
- Implement with Master Switch, 3ft.
- Trimble ISO to ECU Harness, 3ft.
-
2. SLURRY ECU
DESCRIPTION
- Slurry ECU Kit
- Terminator
-
3. ADAPTER HARNESS
DESCRIPTION
- Slurry to Raven 22-Pin Adapter
-
OPTIONAL ACCESSORIES
DESCRIPTION
- Foot Pedal with 12ft. Cable
- Foot Pedal Extension
- Download Box Kit
- Diagnostic T-Adapter DT 4-Pin
- IBIC ISOBUS T-Adapter DT 4-Pin
- DT-4-Pin to DB9 Download Box

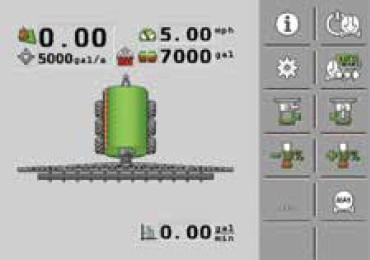

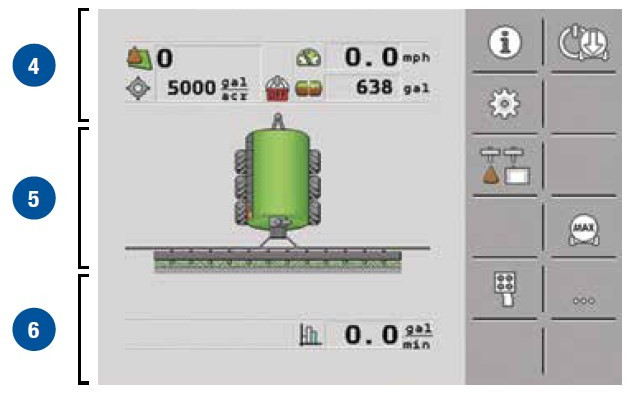

VIEWABLE PARAMETERS
-
4. SPEED, GAL/ACRE, TANK LEVEL
-
5. VIRTUAL TANK GAUGE
-
6. APPLICATION RATE
-

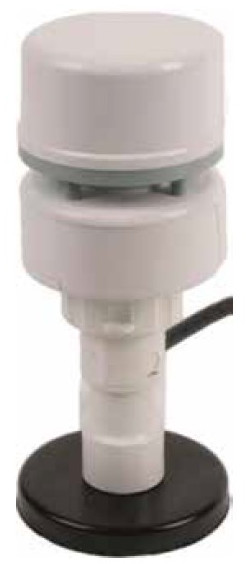

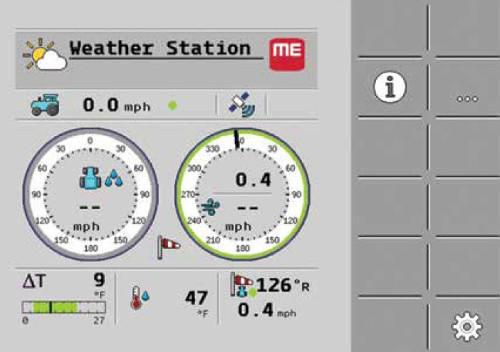

ISOBUS WEATHER STATION
Be prepared for whatever mother nature has planned by monitoring live weather parameters from the comfort of your cab. CNH Industrial's Weather System Kit is the first ISOBUS weather station on the market. It features a simple plug n' play installation process and a maintenance free design without moving parts for added reliability.
Not only does this station give you weather readouts, it will also recommend the fertilizer droplet size given the current weather pattern.
-
WEATHER SYSTEM KIT
DESCRIPTION
- Weather System Kit
-
ADAPTER HARNESS
DESCRIPTION
- Diagnostic ISOBUS T-Adapter DT 4-Pin
- IBIC ISOBUS T-Adapter DT 4-Pin
PARAMETERS AVAILABLE
- TRUE AND APPARENT WIND SPEED AND DIRECTION
- TEMPERATURE
- RELATIVE AIR HUMIDITY
- BAROMETRIC PRESSURE
- MACHINE ROLL
- MACHINE PITCH
Note: Task Controller must be unlocked on your PLM™ IntelliView™ to use PLM™ ISOBUS Product Control
